Product Summary
The 4000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.
Product Details
Heavy Duty Panic Exit Device:

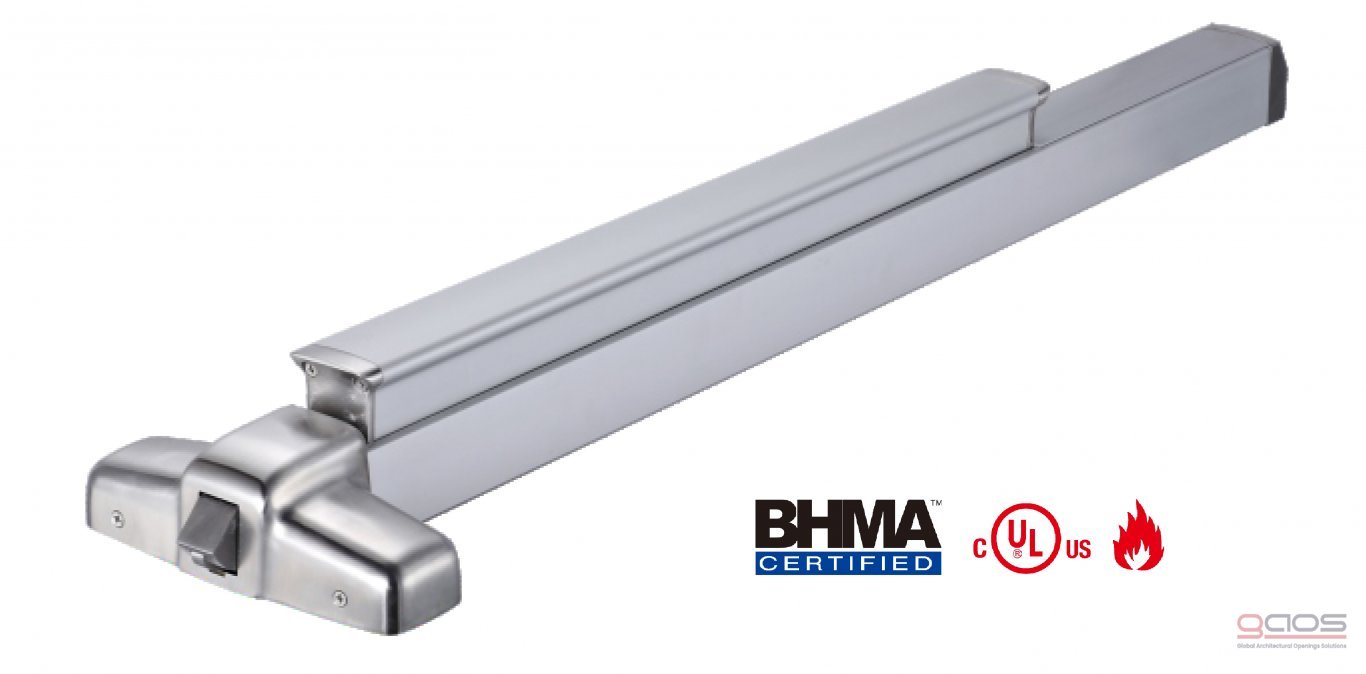

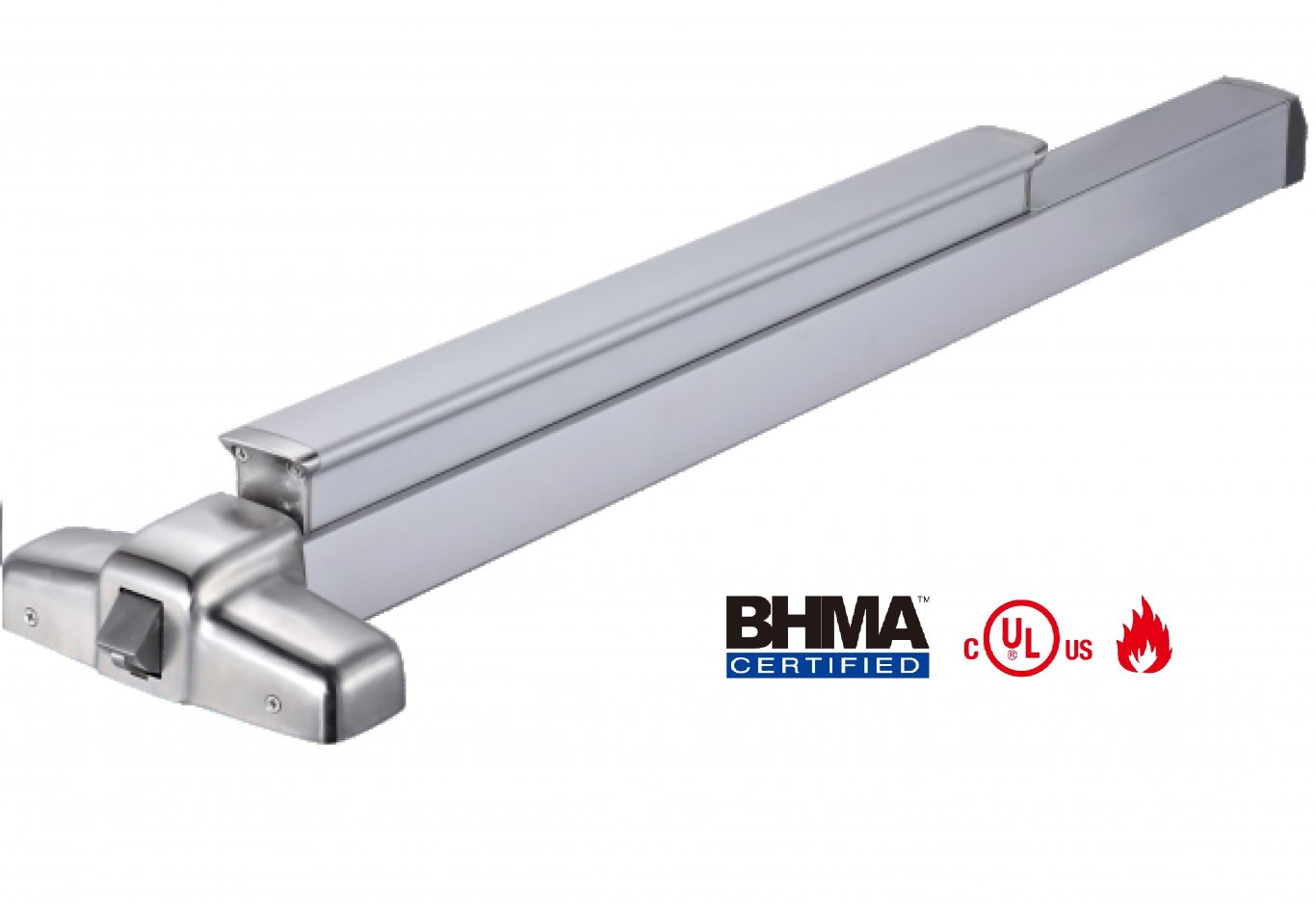

1-PED 4000: Touch Type Panic Exit Rim Device
•Tested up to 500,000 cycle.
•Security anti-thrust latch.
•Non handed.
•Certificates: ANSI/BHMA A156.3 grade1
UL10C, 3 hours fire rated.
•Material: Steel, Stainless steel, Aluminum.
* Finishes: 1) Standard: Satin Stainless steel, Silver Painted.
2) Optional: Polishing, PVD, Black, Red.

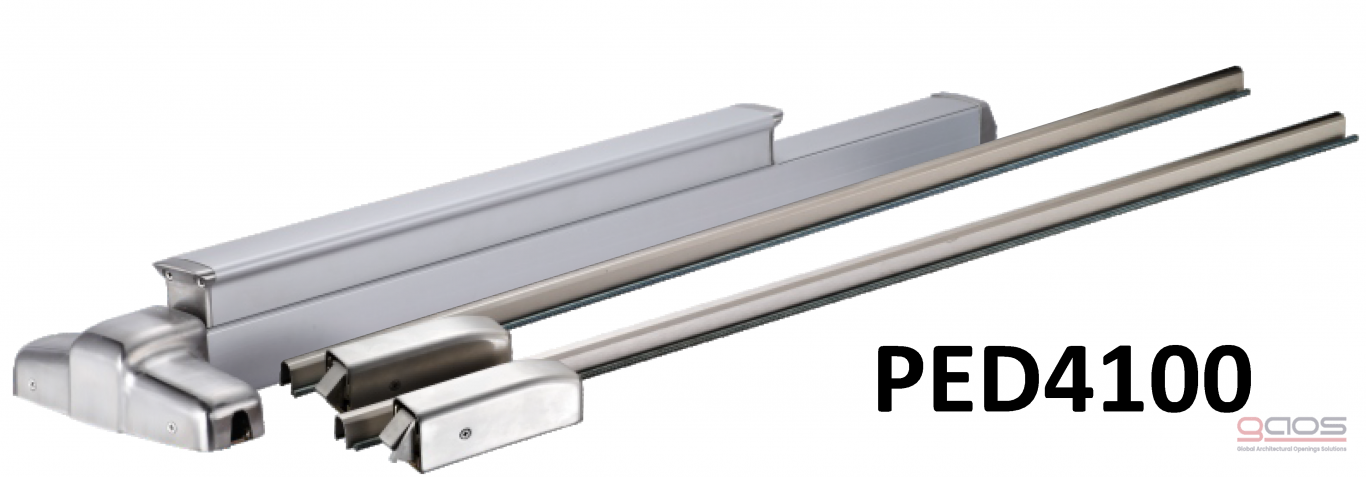

2-PED4100: Touch Type Panic Exit Bolts
•Tested up to 500,000 cycle.
•Security anti-thrust latch.
•Non handed.
•Certificates: ANSI/BHMA A156.3 grade1
UL10C, 3 hours fire rated.
•Material: Steel, Stainless steel, Aluminum.
* Finishes: 1) Standard: Satin Stainless steel, Silver Painted.
2) Optional: Polishing, PVD, Black, Red.

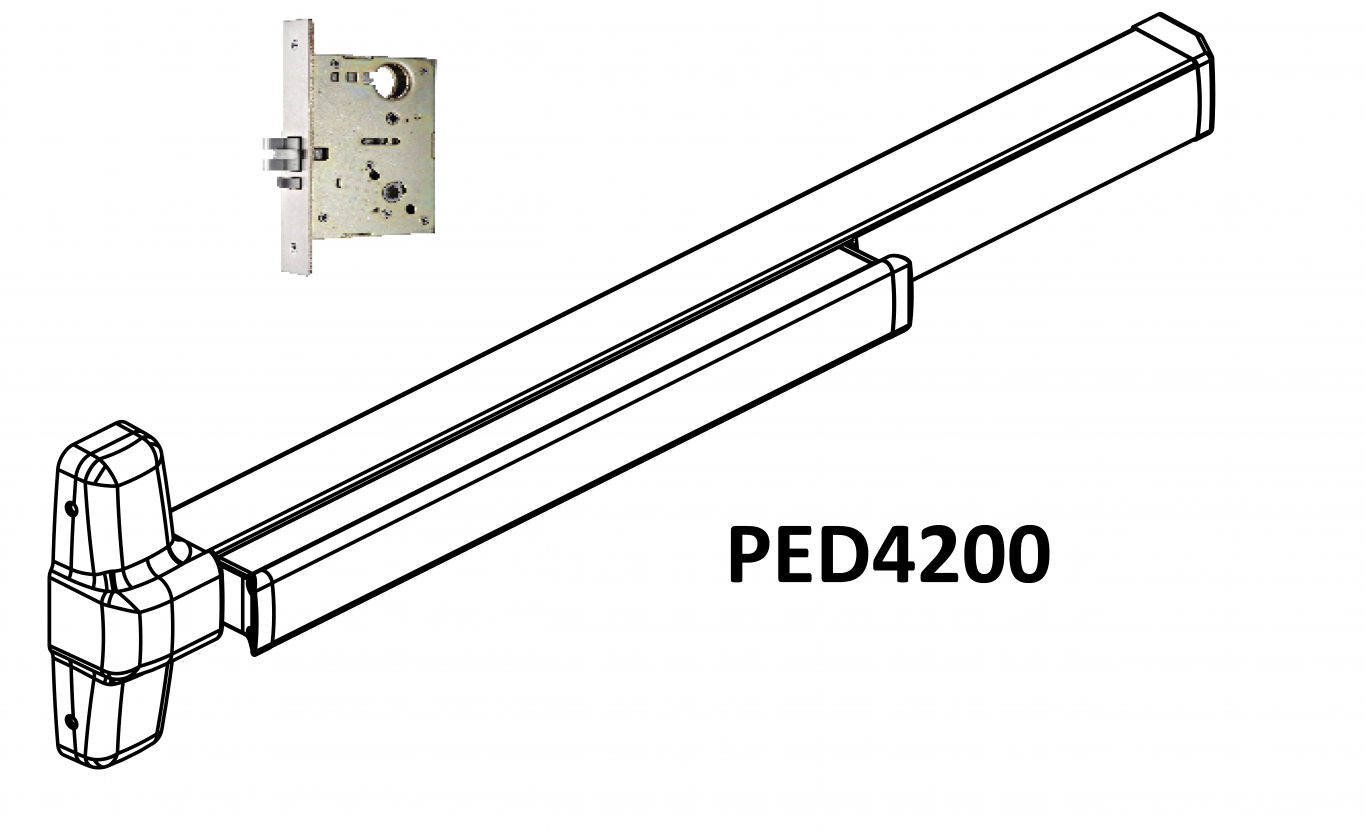

3- PED4200: Touch Type Panic Exit Mortise Lock.
•Tested up to 500,000 cycle.
•Security anti-thrust latch.
•Non handed.
•Certificates: ANSI/BHMA A156.3 grade1
UL10C, 3 hours fire rated.
•Material: Steel, Stainless steel, Aluminum.
* Finishes: 1) Standard: Satin Stainless steel, Silver Painted.
2) Optional: Polishing, PVD, Black, Red.
4-PED4001, 4002, 4003: External Device:
•Free Wheeling
•Non handed.
•Door thickness 44-50mm
•Material: Steel, Stainless steel.
• Finishes: 1) Standard: Satin Stainless steel, Silver Painted.
2) Optional: Polishing, PVD, Black.
